lathe cutting speed chart pdf

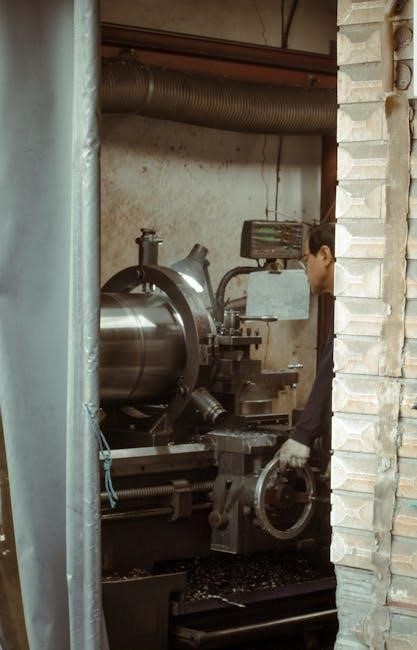

Lathes require precise cutting speeds for optimal machining. Cutting speed charts provide guidelines for material-specific parameters‚ ensuring efficiency and tool longevity. This guide offers a comprehensive overview of lathe cutting speed charts‚ helping machinists optimize their processes for various materials and tools.
1.1 Importance of Cutting Speed in Machining
Cutting speed is critical in machining as it directly impacts tool life‚ surface finish‚ and machining efficiency. Proper speeds prevent tool wear‚ reduce heat generation‚ and minimize the risk of tool failure. Incorrect speeds can lead to poor surface quality‚ increased production costs‚ and reduced productivity. Cutting speed charts provide material-specific guidelines‚ ensuring optimal performance for various materials and tools. By adhering to recommended speeds‚ machinists achieve consistent results‚ extend tool longevity‚ and enhance overall machining accuracy. This ensures safer operations and higher-quality finished parts.
1.2 Purpose of a Lathe Cutting Speed Chart
A lathe cutting speed chart serves as a reference guide for machinists to determine optimal cutting parameters for various materials and tools. Its primary purpose is to provide recommended speeds‚ ensuring efficient and safe machining operations. By following the chart‚ machinists can avoid tool damage‚ reduce production time‚ and achieve consistent results. It also helps in selecting appropriate tools and materials‚ optimizing feed rates‚ and maintaining surface quality. The chart is essential for both experienced professionals and beginners‚ offering a standardized approach to achieve precise and cost-effective machining outcomes across different workpieces and operations.
1.3 Overview of the Lathe Cutting Speed Chart PDF
The lathe cutting speed chart PDF is a comprehensive guide providing detailed cutting parameters for various materials and tools. It includes charts‚ tables‚ and formulas to help machinists determine optimal speeds‚ feeds‚ and depths of cut. The PDF covers a wide range of materials‚ from steels to non-ferrous metals‚ and offers recommendations for different tool types‚ such as HSS and carbide. It also includes examples and calculations to ensure precise and efficient machining. This resource is essential for both experienced professionals and newcomers‚ serving as a quick reference to achieve safe and effective lathe operations.
Understanding Key Factors in Cutting Speed
Cutting speed is influenced by material type‚ tool material‚ depth of cut‚ and feed rate. These factors must be optimized for efficient and precise machining operations.
2.1 Material Types and Their Impact on Cutting Speed
Material types significantly influence cutting speeds in lathe operations. Harder materials like high-carbon steel require lower speeds to prevent tool wear‚ while softer materials such as aluminum can tolerate higher speeds. Stainless steel‚ due to its toughness‚ often demands intermediate speeds. Brass and copper‚ being non-ferrous‚ allow for faster cutting. The properties of the workpiece material‚ such as hardness and thermal conductivity‚ determine the optimal cutting speed. Using a lathe cutting speed chart ensures machinists can adjust parameters for specific materials‚ balancing productivity and tool longevity. Proper material-specific settings are critical for achieving precise and efficient machining results.
2.2 Tool Material and Its Effect on Cutting Speed
The tool material significantly impacts cutting speeds in lathe operations. High-Speed Steel (HSS) tools are commonly used but require moderate speeds to prevent wear. Carbide tools‚ being harder and more durable‚ allow for higher cutting speeds. Coated tools‚ such as those with titanium nitride coatings‚ offer enhanced wear resistance‚ enabling even faster machining. The choice of tool material directly influences the maximum allowable cutting speed‚ with harder materials permitting higher speeds. Using the correct tool material ensures optimal performance‚ extending tool life and improving surface finish. Proper tool selection is essential for achieving efficient and precise machining results.
2.3 Depth of Cut and Its Influence on Speed
The depth of cut (DOC) plays a crucial role in determining cutting speeds. A deeper cut increases the load on the tool‚ requiring a reduction in speed to prevent tool failure. Conversely‚ a shallower DOC allows for higher speeds‚ enhancing productivity. The optimal depth balances material removal rate and tool longevity. Excessive DOC can lead to vibration and reduced surface finish‚ while too shallow a cut may not be efficient. Adjusting the DOC according to material and tool type ensures safe and efficient machining. Proper depth selection is vital for maintaining tool life and achieving desired results.
2.4 Feed Rate and Its Relationship with Cutting Speed
Feed rate‚ the distance the tool advances per revolution‚ directly influences cutting speed. Higher feed rates increase material removal but may require lower cutting speeds to prevent tool wear. Cutting speed and feed rate are inversely related; increasing one often necessitates adjusting the other. Optimal feed rates depend on material hardness and tool type‚ with harder materials typically requiring lower feed rates. Excessive feed rates can lead to tool wear and poor surface finish‚ while too low may reduce productivity. Balancing feed rate and cutting speed ensures efficient machining‚ tool longevity‚ and desired surface quality‚ making it critical for successful lathe operations.
Cutting Speeds for Common Materials
Cutting speeds vary by material‚ with steel ranging from 80-400 SFM‚ stainless steel at 35-150 SFM‚ aluminum up to 1‚000 SFM‚ and brass at 100-400 SFM.
3.1 Steel (Carbon and Alloy)
Carbon and alloy steels have specific cutting speeds based on their hardness and application. For carbon steel (SAE 1020)‚ cutting speeds range from 80-120 SFM with HSS tools and 300-400 SFM with carbide tools. Alloy steels‚ like SAE 1050‚ typically range from 100-150 SFM with HSS and 350-450 SFM with carbide. Feed rates for HSS tools are generally between 0.002-0.020 inches per revolution‚ while carbide tools can handle 0.006-0.035 inches per revolution. These parameters ensure optimal machining performance‚ balancing tool life and material removal rates for both roughing and finishing operations.
3.2 Stainless Steel
Stainless steel cutting speeds are generally lower than carbon steel due to its higher toughness and corrosion resistance. For high-speed steel (HSS) tools‚ cutting speeds range from 60-100 SFM‚ while carbide tools can operate at 200-300 SFM. Feed rates for HSS tools typically range from 0.003-0.012 inches per revolution‚ increasing to 0.006-0.020 inches for carbide tools. These parameters ensure a balance between material removal rates and tool life. Proper coolant use is recommended to maintain surface finish and reduce tool wear‚ especially when machining harder stainless steel grades like 304 or 316. Adjustments may be needed for specific alloys to optimize performance.
3.3 Aluminum and Its Alloys
Aluminum and its alloys typically allow for higher cutting speeds due to their soft‚ non-ferrous nature. High-speed steel (HSS) tools can operate at 100-200 SFM‚ while carbide tools can reach 400-800 SFM. Feed rates for HSS tools range from 0.004-0.015 inches per revolution‚ increasing to 0.010-0.030 inches for carbide tools. Aluminum’s softness often requires lower feed rates to prevent galling and chip buildup. Lubrication is crucial to manage heat and extend tool life‚ especially when machining harder alloys like 6061 or 7075. Adjustments may be needed for specific alloy properties to achieve optimal results.
3.4 Brass and Bronze
Brass and bronze materials generally allow for moderate to high cutting speeds due to their excellent machinability. High-speed steel (HSS) tools typically operate between 150-300 SFM‚ while carbide tools can handle 300-600 SFM. Feed rates for HSS tools range from 0.005-0.020 inches per revolution‚ increasing to 0.010-0.040 inches for carbide tools. Bronze‚ being harder than brass‚ may require slightly lower speeds to prevent tool wear. Lubrication is recommended to reduce friction and prevent overheating. These materials’ good thermal conductivity allows for efficient heat dissipation‚ enabling higher cutting speeds while maintaining tool life and surface finish quality.
3.5 Copper and Other Non-Ferrous Metals
Copper and other non-ferrous metals‚ such as aluminum and magnesium‚ exhibit high machinability‚ allowing for relatively high cutting speeds. High-speed steel (HSS) tools typically operate at 100-200 SFM for copper‚ while carbide tools can reach up to 400 SFM. Feed rates range from 0.004 to 0.012 inches per revolution‚ depending on the tool material and desired surface finish. Copper’s high thermal conductivity requires careful coolant application to prevent overheating. For other non-ferrous metals like aluminum‚ speeds can range from 200-800 SFM with HSS tools and up to 1‚000 SFM with carbide tools. Proper tool geometry and sharpness are essential to avoid galling and ensure efficient machining.
Tool-Specific Cutting Speeds
Tool material significantly impacts cutting speeds. High-speed steel (HSS) tools operate at lower speeds‚ while carbide tools allow for higher speeds. Coated tools further enhance performance and longevity.
4.1 High-Speed Steel (HSS) Tools
HSS tools are widely used for their balance of cost and performance. They are suitable for machining softer materials like aluminum‚ brass‚ and mild steel. Cutting speeds for HSS tools typically range from 80 to 150 feet per minute (fpm)‚ depending on the material. For example‚ aluminum can be machined at higher speeds (100-150 fpm)‚ while mild steel is generally around 80-120 fpm. Proper speeds ensure tool longevity and prevent premature wear. Always reference a lathe cutting speed chart for specific material recommendations to optimize machining operations and maintain surface finish quality.
4.2 Carbide Tools
Carbide tools offer superior hardness and heat resistance‚ making them ideal for high-speed machining. Cutting speeds for carbide tools significantly exceed HSS‚ typically ranging from 300 to 800 feet per minute (fpm). For example‚ steel materials can be machined at 400-600 fpm‚ while aluminum can go up to 700-800 fpm; These tools are optimal for hard materials and high-volume production. Using a lathe cutting speed chart ensures proper settings‚ preventing tool failure and improving efficiency. Always adjust speeds based on material hardness and tool geometry for optimal performance and surface finish quality in machining operations. Proper application extends tool life and ensures precision.
4.3 Coated Tools and Their Speed Advantages
Coated tools‚ such as those with titanium nitride (TiN) or alumina (Al2O3) coatings‚ offer enhanced wear resistance and thermal protection. These coatings allow for increased cutting speeds compared to uncoated tools‚ improving productivity. For example‚ coated carbide tools can operate at 10-20% higher speeds than uncoated ones‚ reducing machining time. The lathe cutting speed chart highlights these advantages‚ enabling machinists to maximize efficiency without compromising tool life. Proper application of coated tools ensures better surface finishes and reduced downtime‚ making them a cost-effective choice for demanding machining applications. Always refer to the chart to optimize coated tool performance.
Calculating Spindle Speed and Feed Rates
Spindle speed (RPM) is calculated using the formula: RPM = (cutting speed in ft/min * 4) / tool diameter in inches; Feed rates are derived similarly.
5.1 Formulas for Cutting Speed Calculation
The cutting speed formula is essential for determining optimal machining parameters. The primary formula is: Vc = (π × D × N) / 1000‚ where Vc is the cutting speed in meters per minute‚ D is the tool diameter in millimeters‚ and N is the spindle speed in revolutions per minute. This formula ensures accurate calculation of the cutting speed for various materials and tools. Additionally‚ the feed rate formula‚ f = N × fz‚ where fz is the feed per tooth‚ helps in determining the material removal rate. These formulas are fundamental for achieving precise and efficient machining operations.
5.2 RPM Calculation Based on Tool Diameter
RPM calculation is crucial for determining the correct spindle speed. The formula is: RPM = (Vc × 1000) / (π × D)‚ where Vc is the cutting speed in meters per minute and D is the tool diameter in millimeters. This ensures the tool operates within its recommended cutting speed range. For example‚ if Vc is 30 m/min and D is 20 mm‚ RPM = (30 × 1000) / (π × 20) ≈ 477 rpm. Accurate RPM calculation prevents tool damage and ensures optimal machining. Always refer to the lathe cutting speed chart PDF for specific material and tool recommendations.
5.3 Feed Rate Calculation for Optimal Machining
Feed rate calculation ensures efficient material removal while maintaining tool life. The formula is: Feed Rate (mm/min) = RPM × Number of Teeth × Feed per Tooth. For example‚ if RPM is 1000‚ 4 teeth‚ and 0.01 mm/tooth‚ the feed rate is 40 mm/min. Adjustments may be needed based on material hardness and tool geometry. Higher feed rates are used for roughing cuts‚ while lower rates are ideal for finishing. Always consult the lathe cutting speed chart PDF for specific material recommendations to avoid tool wear and ensure surface finish quality.
Depth of Cut and Machining Time
Depth of cut influences machining time and material removal efficiency. Optimal depth balances tool wear and surface finish. Machining time is calculated by dividing material length by feed rate.
6.1 Determining the Optimal Depth of Cut
The optimal depth of cut balances material removal efficiency with tool wear and surface finish; Factors like material hardness‚ tool geometry‚ and machining objectives influence this determination. For roughing cuts‚ deeper cuts are used to remove material quickly‚ while finishing cuts require shallower depths to achieve precision. The depth must also consider the tool’s edge strength to prevent damage. Proper calculation ensures prolonged tool life and consistent results. Using charts‚ machinists can reference material-specific guidelines to set the most effective depth for their operations. This optimization is key to achieving both productivity and quality in lathe operations.
6.2 Calculating Machining Time for Turning Operations
Machining time for turning operations is calculated by dividing the workpiece length by the feed rate multiplied by the spindle speed. This ensures accurate planning and efficient operations. Factors like depth of cut and material removal rate are crucial. Using formulas‚ machinists determine the optimal time required for each operation‚ balancing productivity and quality. Cutting speed charts provide essential data for precise calculations‚ helping to minimize errors and optimize performance in lathe operations.
Roughing vs. Finishing Cuts
Roughing cuts remove material quickly with higher feed rates and depths‚ while finishing cuts achieve final dimensions with lower parameters for precision and surface quality.
7.1 Speeds for Roughing Cuts
Roughing cuts involve removing large amounts of material quickly. Cutting speeds for roughing are generally higher than finishing cuts‚ balancing material removal and tool life. For steel‚ roughing speeds often range between 80-200 ft/min with HSS tools and 300-600 ft/min with carbide tools. Aluminum typically allows higher speeds‚ up to 600 ft/min‚ while materials like stainless steel may require slower speeds‚ around 100-300 ft/min. The depth of cut and feed rate also influence speed selection‚ ensuring efficient material removal without excessive tool wear. Proper speed selection optimizes machining time and tool performance.
7.2 Speeds for Finishing Cuts
Finishing cuts require lower speeds to achieve precise dimensions and a superior surface finish. For steel‚ finishing speeds typically range between 80-150 ft/min with HSS tools and 200-300 ft/min with carbide tools. Aluminum and softer materials can tolerate higher speeds‚ up to 500 ft/min‚ for a polished finish. Feed rates are reduced to minimize tool wear and ensure accuracy. The balance between speed and feed rate is critical to avoid overheating or damaging the workpiece. Proper finishing speeds ensure a smooth‚ even surface while maintaining tool longevity and process efficiency.
7.3 Tool Geometry for Different Cut Types
Tool geometry plays a crucial role in determining the success of various cut types. For roughing cuts‚ tools with strong cutting edges and high rake angles are preferred to handle large material removal rates. Finishing cuts‚ however‚ require tools with smaller nose radii and negative rake angles to achieve tight tolerances and smooth finishes. The selection of the correct tool geometry ensures optimal performance‚ reduces tool wear‚ and improves surface quality. Proper alignment of the tool’s cutting edges with the workpiece material is essential for achieving desired results in both roughing and finishing operations. This balance ensures efficiency and precision in machining processes.
Advanced Cutting Strategies
Advanced cutting strategies enhance machining efficiency. Techniques like ProfitTurning optimize roughing operations‚ while high-speed machining reduces cycle times. Software tools further refine speed settings for precise outcomes.
8.1 High-Speed Machining Techniques
High-speed machining techniques significantly enhance productivity by increasing cutting speeds and reducing cycle times. These methods often utilize advanced tool materials like carbide and coated tools‚ which can withstand higher velocities. Proper setup ensures tools maintain sharpness‚ reducing wear and tear. By employing optimized spindle speeds and feed rates‚ machinists achieve superior surface finishes and maintain tool life. High-speed techniques are particularly effective for materials like aluminum and steel‚ where faster cuts are feasible without compromising quality. This approach is ideal for modern manufacturing‚ where efficiency and precision are paramount.
8.2 ProfitTurning and Other Advanced Strategies
ProfitTurning is an advanced high-speed roughing strategy designed to maximize material removal rates while maintaining tool life. By optimizing toolpaths and engagement angles‚ it reduces cutting forces and vibration‚ enabling faster cycle times. This method is particularly effective for hard-to-machine materials. Other advanced strategies include adaptive machining and Trochoidal milling‚ which adapt feed rates and spindle speeds in real-time. These techniques‚ often integrated with CAM software like ESPRIT‚ ensure precise control over cutting parameters‚ enhancing efficiency and surface quality. They are ideal for complex geometries and high-performance machining applications.
8.3 Using Software for Optimal Speed Settings
Modern machining software plays a crucial role in optimizing lathe cutting speeds. Programs like ESPRIT and AdvantEdge utilize material properties‚ tool geometry‚ and operational parameters to calculate ideal spindle speeds and feed rates. These tools allow for real-time adjustments‚ ensuring maximum efficiency without compromising tool life. By integrating cutting speed charts into the software‚ machinists can access precise recommendations tailored to specific materials and operations. This digital approach minimizes human error and enhances productivity‚ making it an essential asset for contemporary manufacturing processes.
Safety and Best Practices
Ensure safety by wearing PPE and properly setting up tools. Follow best practices to maintain tool longevity and achieve optimal surface finishes effectively.
9.1 Safety Precautions When Using Lathe Cutting Speeds
Always wear personal protective equipment (PPE)‚ including safety goggles and gloves‚ when operating a lathe. Ensure the workpiece is securely fastened to prevent accidental ejection. Never exceed recommended cutting speeds‚ as excessive speeds can cause tool failure or damage. Keep loose clothing and jewelry away from moving parts. Maintain proper visibility and avoid distractions while machining. Use machine guards to protect against flying chips and debris. Familiarize yourself with emergency stop procedures and ensure they are easily accessible. Regularly inspect tools and machinery for wear or damage. Adhere to these precautions to minimize risks and ensure safe machining operations.
9.2 Best Practices for Tool Life and Surface Finish
Optimize tool life by maintaining appropriate cutting speeds and feeds for the specific material and tool type. Avoid excessive heat generation‚ as it can prematurely wear tools. Use coolant or lubricants when necessary to reduce friction and extend tool longevity. Ensure tools are sharp‚ as dull tools increase cutting forces and heat. For a superior surface finish‚ use lighter cuts and higher speeds during finishing operations. Regularly inspect and maintain tools to prevent wear-related issues. Proper tool geometry and alignment are crucial for consistent results. Follow these practices to achieve longer tool life and improved surface quality in machining operations.
Case Studies and Examples
Case studies highlight real-world applications of lathe cutting speed charts‚ showcasing improved machining efficiency and tool longevity through optimized speed settings for various materials like steel and aluminum.
10.1 Example Calculations for Steel Turning
Example calculations for steel turning demonstrate how to apply lathe cutting speed charts. For SAE 1020 steel‚ a high-speed steel (HSS) tool might operate at 100 ft/min‚ while a carbide tool could run at 300-400 ft/min. To calculate spindle speed (RPM)‚ use the formula: RPM = (cutting speed in ft/min × 4) / tool diameter in inches. For instance‚ a 1-inch tool at 300 ft/min would require 1‚200 RPM. Feed rates typically range from 0.002 to 0.020 in/rev for HSS and 0.006 to 0.035 in/rev for carbide tools. These examples illustrate practical applications of cutting speed charts for efficient steel machining.
10.2 Real-World Applications of Cutting Speed Charts
Cutting speed charts are widely used in manufacturing plants to optimize machining processes. For instance‚ in automotive and aerospace industries‚ these charts help determine ideal speeds for turning‚ milling‚ and drilling operations. They ensure minimal tool wear and maximal material removal rates. Machinists rely on these charts to set accurate spindle speeds and feed rates‚ reducing downtime and improving product quality. Additionally‚ educational institutions use them to train students in machining practices. The practical application of these charts is evident in their ability to streamline production workflows and enhance overall manufacturing efficiency across various sectors. Their versatility makes them indispensable in modern machining environments.
Additional Resources
Downloadable PDF charts and guides provide detailed cutting speeds for various materials. Online calculators also offer dynamic calculations for specific machining processes and materials‚ enhancing precision and efficiency.
11.1 Downloadable PDF Charts and Guides
Downloadable PDF charts provide comprehensive guides for lathe cutting speeds‚ covering various materials like steel‚ aluminum‚ and non-ferrous metals. These charts include detailed tables with recommended speeds‚ feed rates‚ and tool recommendations. Many resources also offer formulas for calculating spindle speed and feed-per-revolution‚ ensuring precise machining. ISO-colored charts and manufacturer-specific guides‚ such as those from Carbide tooling companies like ZCC-CT‚ are widely available. Examples include charts for Carbon Steel SAE 1020 or Aluminum 6061‚ providing practical data for machinists. These guides are accessible on machining websites‚ forums‚ and manufacturer platforms‚ serving as indispensable tools for optimizing lathe operations.
11.2 Online Calculators for Cutting Speeds
Online calculators simplify the process of determining optimal lathe cutting speeds. These tools allow users to input material type‚ tool diameter‚ and desired parameters to calculate precise spindle speeds and feed rates. Many calculators‚ such as those found on machining websites‚ provide formulas for material removal rates and depth of cut. They support various materials‚ including steel‚ aluminum‚ and non-ferrous metals. Some calculators also offer comparisons between high-speed steel and carbide tools. Examples include calculators for SAE 1020 steel or Aluminum 6061‚ ensuring accurate and efficient machining operations. These resources are widely available on machining forums and manufacturer websites.
